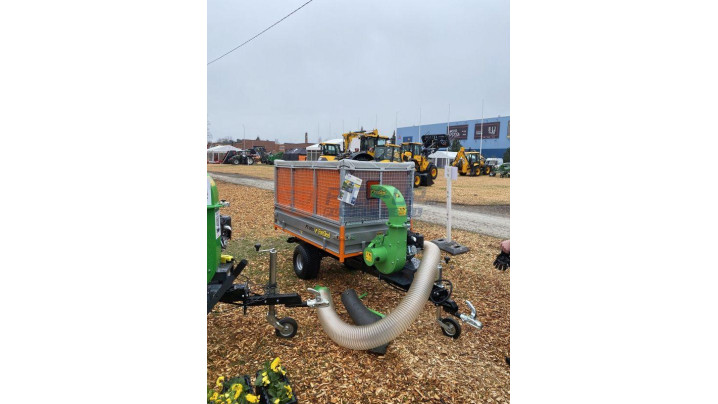

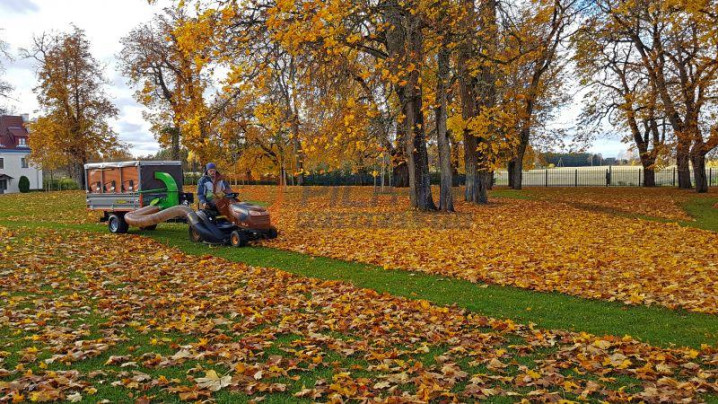

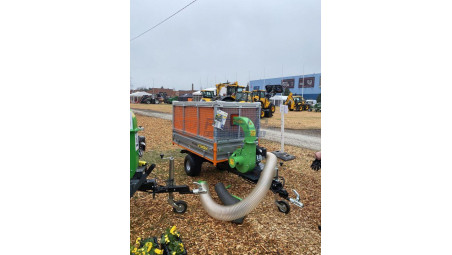

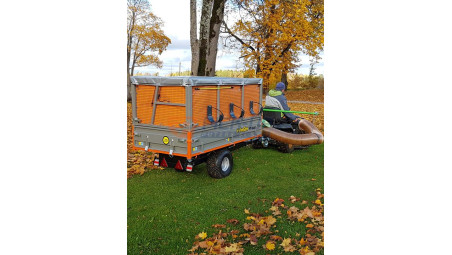

LEAF TRAILER
Preorder
€12,644.94
Tax included
Availability date: 20 working days
Designed for small tractors, compact loaders, golf and park machinery, there is a tipping trailer for lightweight leaf collection with a loading capacity of 600 kg.
Designed for small tractors, compact loaders, golf and park machinery, there is a tipping trailer for lightweight leaf collection with a loading capacity of 600 kg. Update: Now featuring a galvanized frame, side panels, and corner posts! Equipped with a self-contained leaf impeller, it generates a powerful vacuum and high-speed airflow. Leaf trailers come with a sturdy hydraulic tipping mechanism for quick and effortless unloading, featuring a high tip angle. The tipping angle of the trailers is more than sufficient to discharge even the most challenging loads with ease.
Volume - 2 m3
Loading capacity - 600 kg
Weight - 400 kg
Interior dimensions - 2000 mm x 1000 mm x 1000 mm
Dimensions - 3460 mm x 1300 mm x 1650 mm
Tilting platform with hydraulic system at an angle of 50 degrees
Wheels - 20" x 10" x 8"
Standard equipment:
- Hydraulic platform system
- Wheels
- D50 trailer coupling
- Side extensions - 700mm
- Vacuum / leaf vacuum unit - 13 hp (manual start)
- Vacuum tube 5m
- Tube holder on side of trailer
Optional:
- 40mm towing ring (replaces the hook coupling) - 168 EUR + VAT
- Electro-hydraulic tipping system containing 12V 80Ah battery, charger, battery indicator - 1380 EUR + VAT
- Vacuum unit / vacuum cleaner mounted under the trailer - 1800 EUR + VAT
- Vacuum tube / additional vacuum cleaner - 3.5m - 660 EUR + VAT
